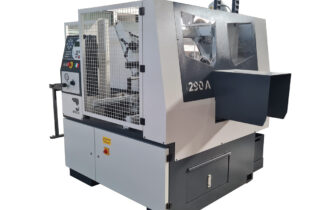

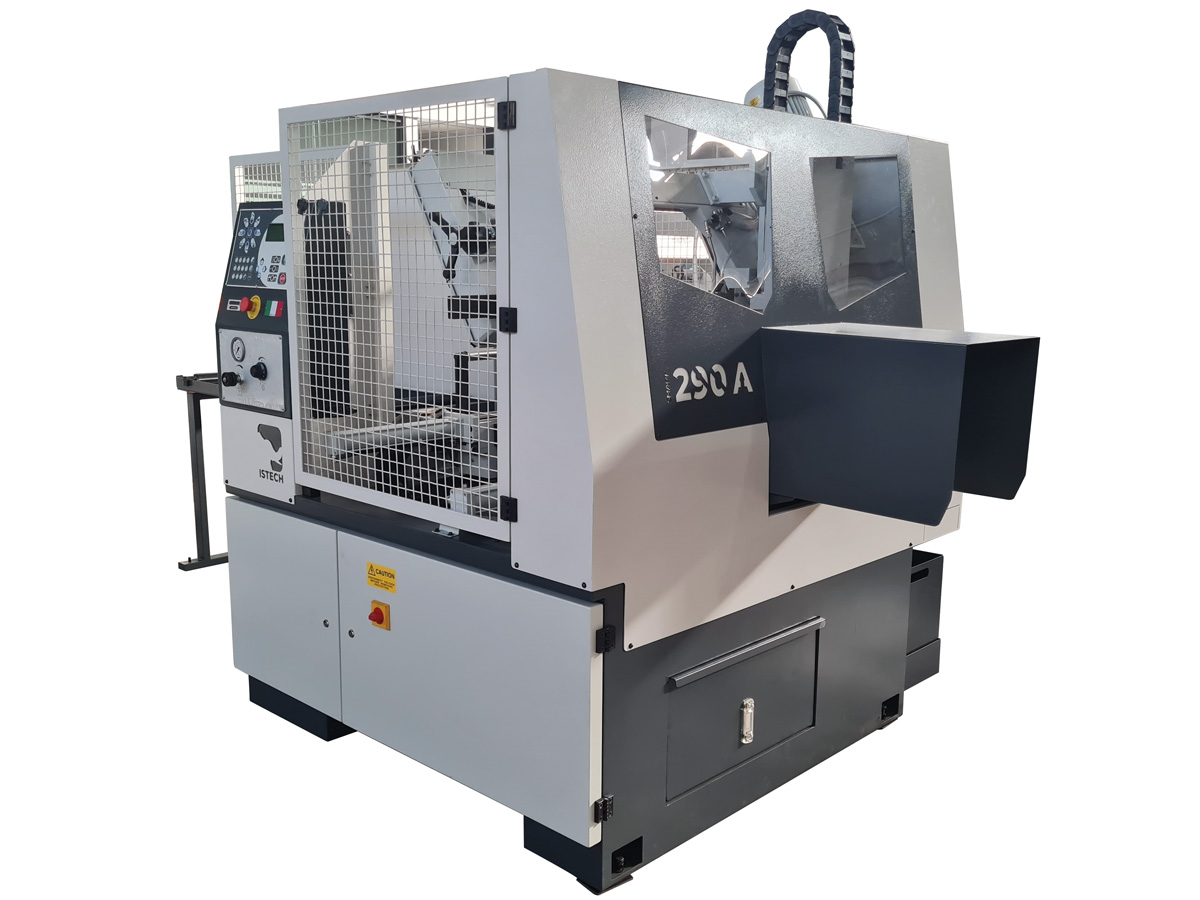

Smart 290A
- Automatic double-column sawing machine with linear guides
One of our best sellers!
The simple, compact and cost-effective solution for the automatic cutting of a wide range of materials.
Compact design and high-performance
Smart 290A was designed using mechanical solutions usually reserved for top-of-the-range sawing machines. The cutting head is installed on two columns for enhanced productivity and cutting precision, while the ball screws ensure quick and accurate bar positioning. Split front vice for enhanced finishing and less bar remainders.
Simple and safe
The fully enclosed design makes the machine safe to use, without affecting its ease of maintenance.
Intuitive interface that allows you to quickly upload the work programs to the control panel.
Full option
The standard version of Smart 290A is particularly rich in accessories and includes a built-in 1.5 m roller table, adjustable blade speed, blade guide with automatic positioning function and limited blade withdrawal.
Cutting capacity
| Cutting capacity | 90° |
|---|---|
| 300x300 |
Technical data
| Blade dimension | 3200 x 27 x 0,9 mm |
| Blade speed, infinitely variable | 20/90 m/1′ |
| Band drive motor, inverter controlled | 2.2 Kw |
| Total connected load | 4.5 Kw |
| Material feed lenght, single stroke | 600 mm |
| Material feed lenght, multiple feed | 99.999 mm |
| Material pass line | 850 mm |
| Overall dimension | 1600 x 1700 x 1900h mm |
| Weight (approx) | 1060 Kg |
