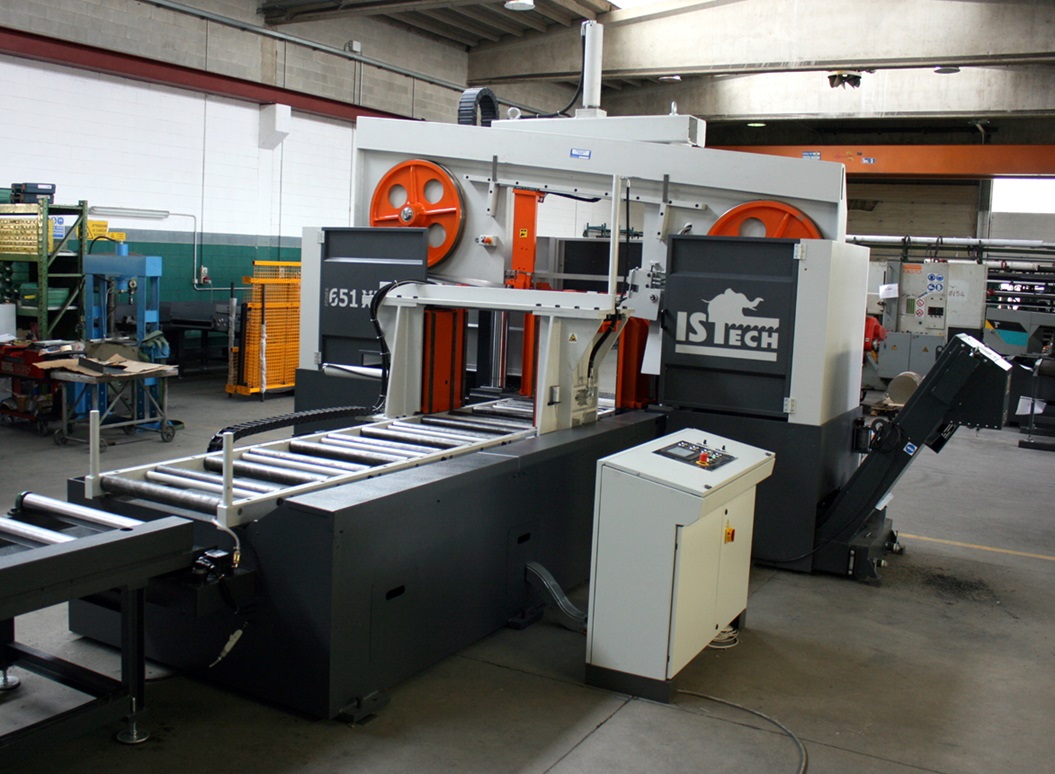

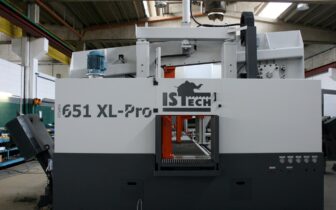

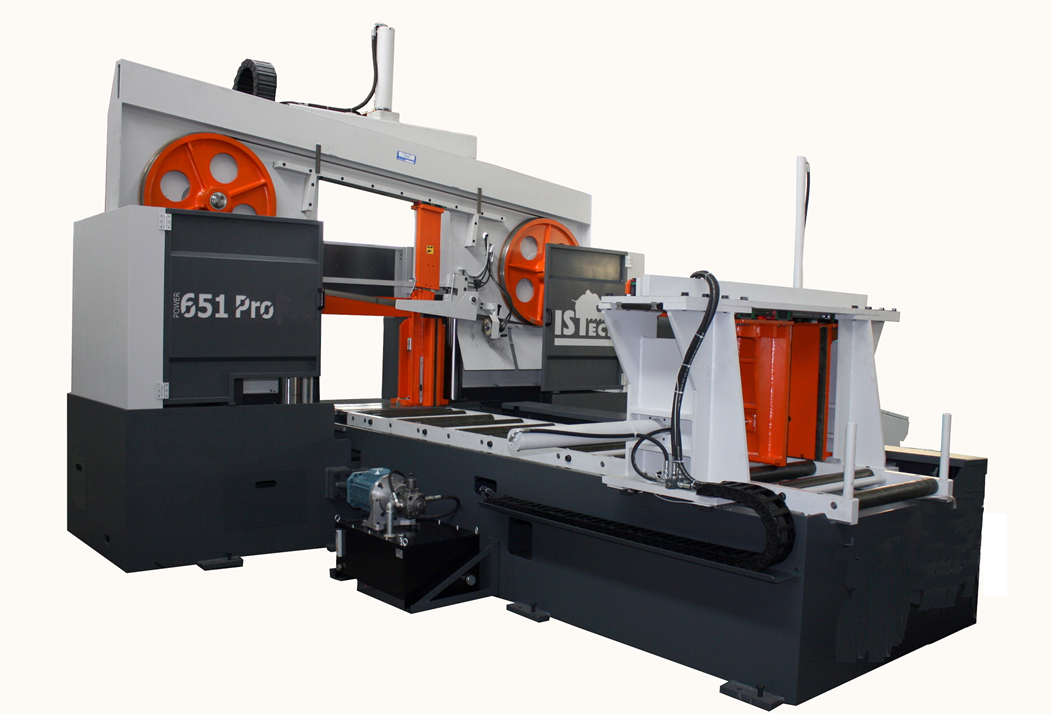

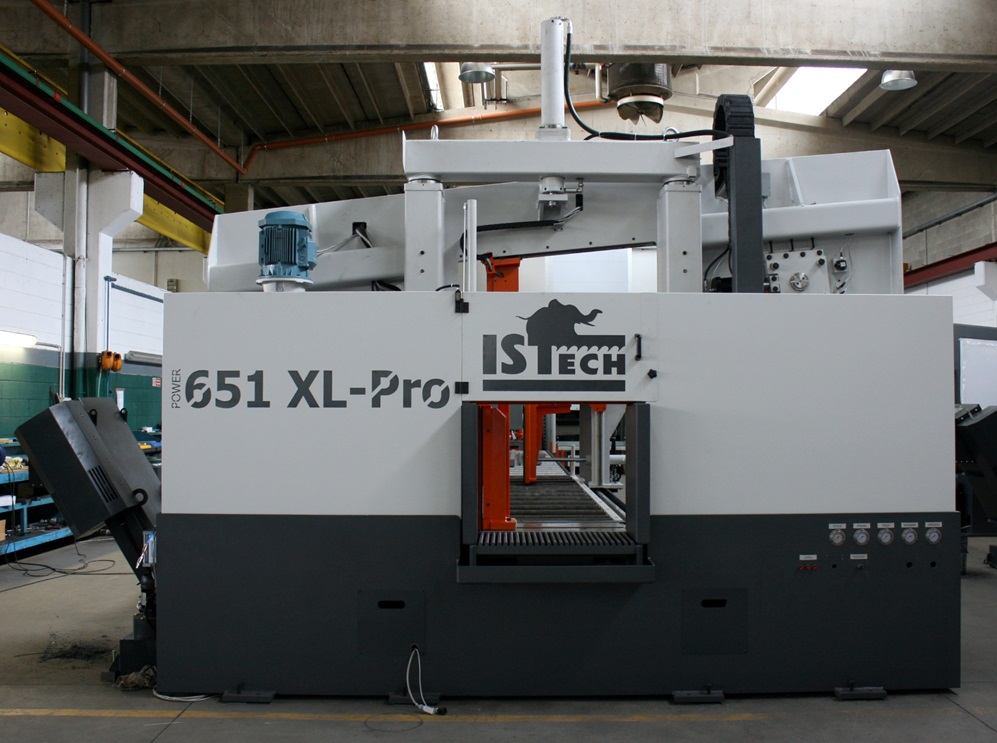

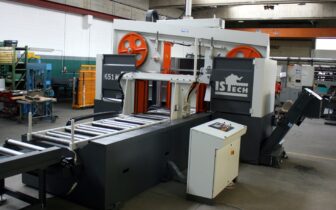

Power 650 Pro
- Automatic chrome-plated double-column sawing machine with long index stroke for material feeding in single stroke up to 3000 mm
- Oblique cutting head, studied to cut rectangular sections
The highest productivity levels, even on the most demanding materials
Perfect blade guide control and excellent positioning accuracy.
That’s all you need to get the best cuts and the ISTech Power sawing machines can guarantee them thanks to:
- maximum control of the cutting feed rate, which is autonomously and continuously adjusted by the sawing machine thanks to the ball screws and brushless motor
- 0.01mm positioning accuracy, thanks to the special drive system of the index stroke. Guarantee of workpieces always all perfectly the same size
Less waste
Precise cuts every time; a certainty that allows you to reduce machining allowances and material waste (besides the subsequent processing times). A goal reached also thanks to the possibility to avoid trimming cuts.
Power Pro takes care of it all
All the adjustments are made automatically by the machine; just indicate the type of material and its dimensions and the sawing machine will set all the other parameters and adjust them continuously during the work cycle in such a way as to obtain the best possible results.
Industry 4.0
With the standard 4.0 package, the Power Pro sawing machines are able to communicate with your management program, allowing you to load cutting programs and make adjustments remotely, monitor the operation of the sawing machine from your smartphone, receive remote technical support and much more.
Cutting capacity
Cutting capacity | 90° |
---|---|
650 | |
750x650 |
Technical data
Material feed lenght, single stroke | 3000 mm |
Blade dimension | 54 x 1.6 mm |
Blade speed, infinitely variable | 15 - 120 m/1′ |
Cutting feed speed, infinitely variable | 5 - 100 mm/1′ |
Band drive motor, inverter controlled | 7.5 Kw |
Total connected load | 14 kw |
Material feed lenght, multiple feed | 99.999 mm |
Index positioning accuracy | ± 0.01 mm |
Index speed | 250 mm/sec |
Minimum reccomended sawing diameter | 25 mm |
Material pass line | 800 mm |
