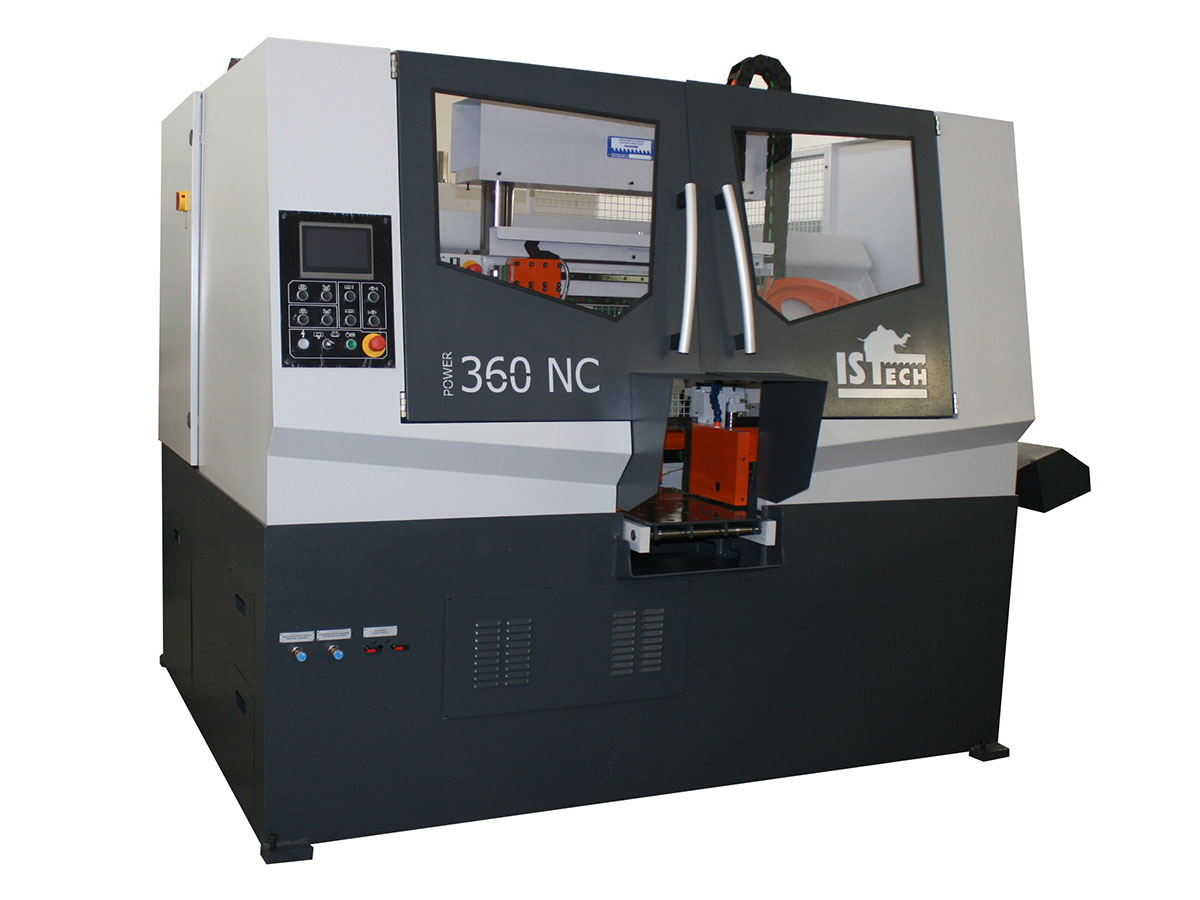

Power 360NC
- Automatic chrome-plated double-column sawing machine, for heavy-duty applications
The highest productivity levels, even on the most demanding materials
Perfect blade guide control and excellent positioning accuracy.
That’s all you need to get the best cuts and the ISTech Power sawing machines can guarantee them thanks to:
- maximum control of the cutting feed, that can be adjusted independently, from the sawing machine, at any time
- 0.01mm positioning accuracy thanks to the special drive system installed on the carriage, that allows obtaining finished pieces of exactly the same size
Less waste
Precise cuts every time; a certainty that allows you to reduce machining allowances and material waste (besides the subsequent processing times). A goal reached also thanks to the possibility to avoid trimming cuts and also to the split front vice that limits bar remainders to the maximum.
Power NC takes care of it all
All the adjustments are made automatically by the machine; just indicate the type of material and its dimensions and the sawing machine will set all the other parameters and adjust them continuously during the work cycle in such a way as to obtain the best possible results.
The discharge outlet of the chips conveyor is installed at a height of 1 m, to allow for many hours of operation without the intervention of the operator.
Industry 4.0
With the 4.0 package, the Power XL sawing machines are able to communicate with your management program, allowing you to load cutting programs and make adjustments remotely, monitor the operation of the sawing machine from your smartphone, receive remote technical support and much more.
Cutting capacity
Cutting capacity | 90° |
---|---|
360×360 |
Technical data
Blade dimension | 5250 x 41 x 1.3 mm |
Blade speed, infinitely variable | 15 -120 m/1′ |
Cutting feed speed, infinitely variable | 0-1500 mm/1′ |
Band drive motor, inverter controlled | 5.5 Kw |
Total connected load | 11 kw |
Material feed lenght, single stroke | 500 mm |
Material feed lenght, multiple feed | 99.999 mm |
Index positioning accuracy | ± 0.01 mm |
Index speed | 200 mm/sec |
Minimum sawing diameter recommended | 25 mm |
Material pass line | 850 mm |
Overall dimension | 2500 x 2200 x 2350h mm |
Weight (approx) | 4.200 Kg |
